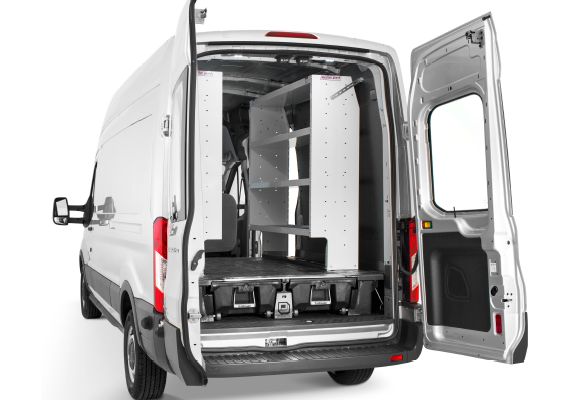

How To: Install Van Shelving with the DECKED System

For .pdf of instruction set, click here: DECKED Best Practices: Installing Van Shelving

1. Always bolt van shelving mounting attachments to the lateral steel tubes which run underneath the deck. Each deck half contains six or seven 1” x .” galvanized steel tubes co-molded laterally into the deck’s HDPE. The steel tubes are indicated by dimples in the surface of the deck as shown in BLUE FIG 1A. Do not bolt or screw shelving only to the HDPE material of the DECKED system. Do not drill into the C-channel, indicated by RED FIG 1A. This channel is where the drawer wheels roll. If van shelving components need to be located on top of the steel C-channel, see FIG 2E for reference.

Screen Shot 2016-04-27 at 11.17.57 AM

2: When bolting to the lateral steel tubes, always bolt all the way through the tube using bolt and flange nut (or nylon insert locknut). When bolting to lateral steel tubes over the drawer cavity, use short enough hardware so as not to obstruct drawer function. Alternately, the bolt can be installed from the underside after holes have been drilled. DO NOT DRILL THROUGH OR ATTACH TO THE C-CHANNEL. Reference FIG 2A-2E for proper attachment.

Screen Shot 2016-04-27 at 11.18.24 AM

3. Always use mounting brackets (circled in red) to attach shelving units to the deck. Avoid placing shelving unit ends directly on the deck. FIG 3A.

Screen Shot 2016-04-27 at 11.19.05 AM

4. Distribute mounting attachment load bars (circled in red) over large areas of the deck panel for shelf support. The smooth surface above the C-channel is ideal. FIG 4A.

Screen Shot 2016-04-27 at 11.18.56 AM

5. Avoid mounting shelving end panels to areas of the deck lacking lateral steel tube support. When such a situation arises, transfer load to the next shelving unit and floor by bolting the unsupported end panel to an adjacent floor-mounted shelf end panel. FIG 5A, FIG 5B.

Screen Shot 2016-04-27 at 11.19.20 AM

6. In the absence of an available lateral steel tube support in the deck or an adjacent shelving end panel to bolt into, transfer the load to the van floor. Take a vertical support and bolt it to the end panel of the DECKED-mounted shelving system and the floor. FIG 6A, FIG 6B.

Screen Shot 2016-04-27 at 11.19.33 AM



*It is important to note that we are separate companies and not responsible for integration and harmony with other products. Please contact WEATHERGUARD, Adrian Steel, Ranger Designs, Masterack or Sortimo directly for confirmation on product compatibility, specs and model numbers.
WARNING: Adding shelving units or making any other modifications to the DECKED system may put you or others at risk of bodily harm. Although we believe that this installation technique is valid, we do not guarantee that any slides or installation techniques will work satisfactorily in all cases. Additionally, installation procedures may vary by model, and these instructions are intended only to provide general guidelines rather than a comprehensive set of installation instruction. Installing shelving units on, or making any other modifications to, DECKED systems is entirely at the risk of the installer.
