CargoGlide

CargoGlide Midsize - Short / 70% / 1,000 lbs

Starting at:

Regular price
$1,399.99 USD
Regular price
USD
Sale price
$1,399.99
Unit price
per
Availability
Sold out
FREE SHIPPING*

All DECKED products ship right to your front door for FREE anywhere in the contiguous U.S.

LIMITED LIFETIME WARRANTY

We build the toughest products on the market and we back everything we make with our Limited Lifetime Warranty. Our team will make sure your experience is second to none. Register your products online to activate.

Secure checkout

DECKED offers fast and secure checkout with all purchases.

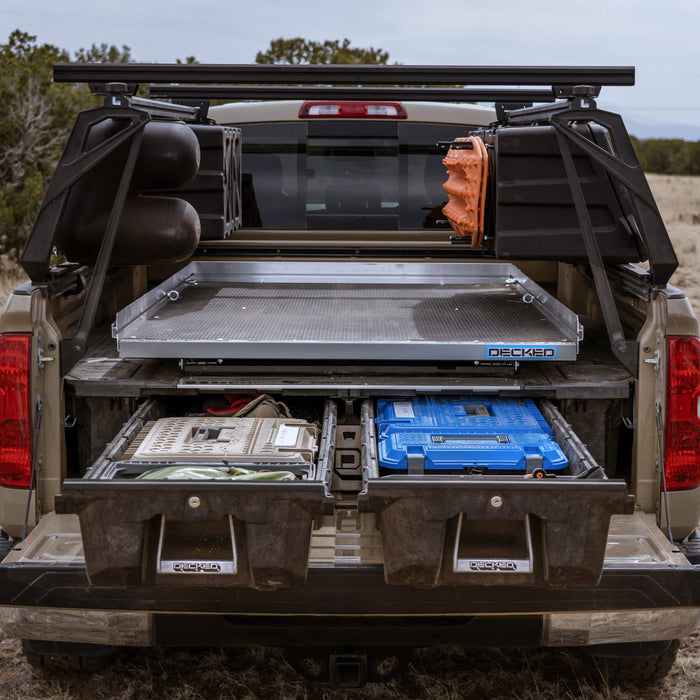

Planning to install CargoGlide w/ a Drawer System?

CargoGlide - Drawer System Compatible

$1,399.99

Shop Now >

DECKED bed slide

truck bed slide

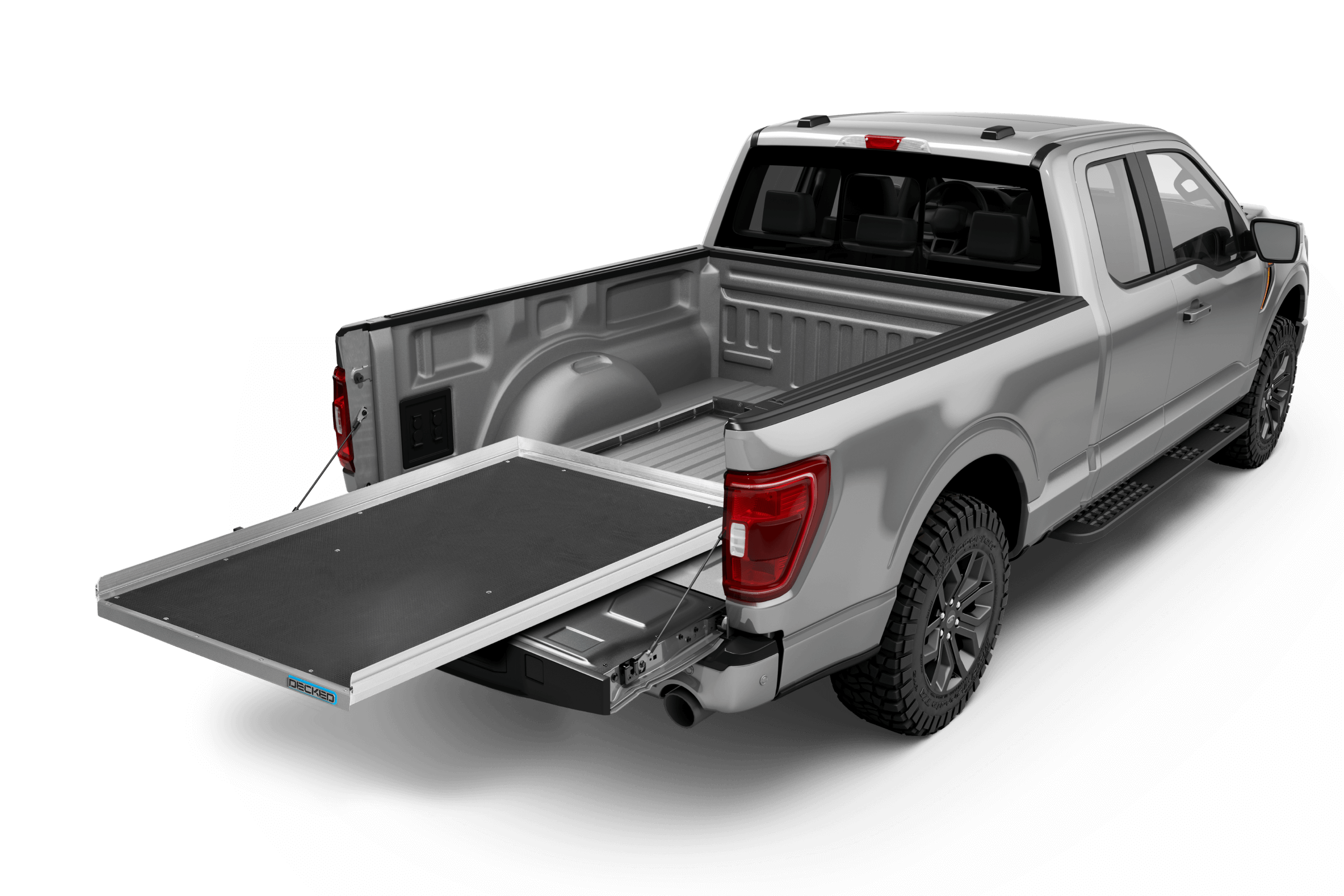

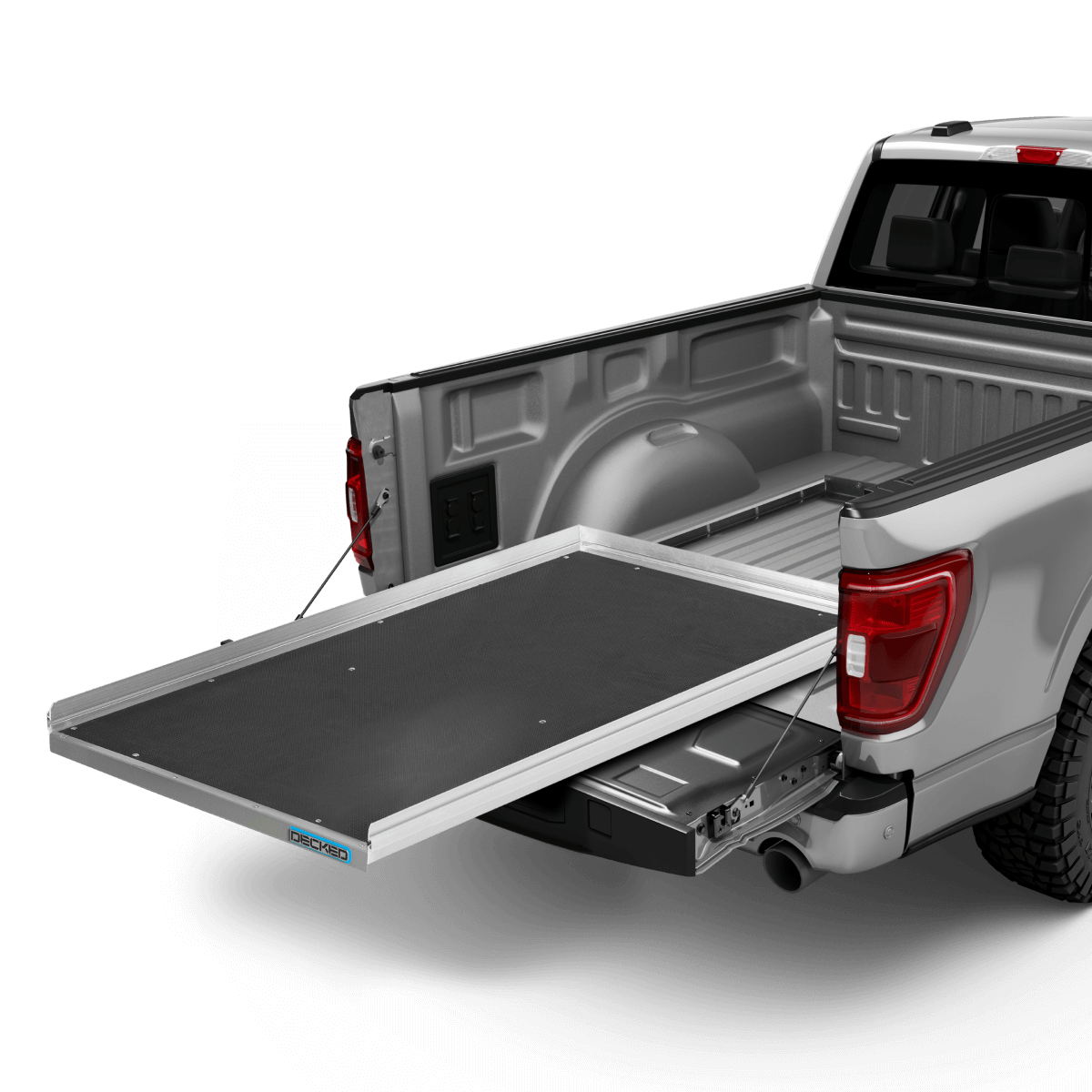

The DECKED CargoGlide truck bed sliding tray is a sliding tool box that makes loading, unloading and accessing your tools and gear easy, safe and fast. Never climb into the bed of your truck to retrieve your gear ever again.

The tray rolls on heavy-duty bearings actuated by a single-handed latch which allows you to smoothly slide out and retrieve your tools and materials.

industrial strength truck bed organization

professional grade

The toughest and most durable bed slide on the market. Built from heavy gauge, powder coated American steel and industrial grade marine plywood (coated with a thermoplastic top sheet), the CargoGlide truck bed slide can take all of the use and abuse of the jobsite and the environment.

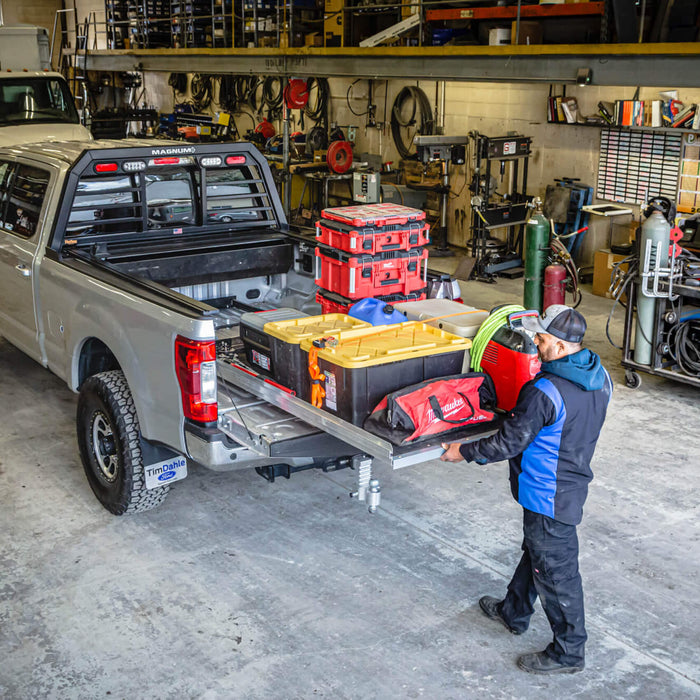

Load it up with compressors, welders, tool boxes, you name it. All of your work items slide right out to you every time.

Customizable truck bed slide

Choose payload, extension, and DECKED Drawer system compatibility

Extension: CargoGlide fits most full-size or midsize trucks and is available in either a 70% or 100% extension (amount the tray slides out of the vehicle bed).

Payload: The tray can carry up to 2,200 lbs—choose between a 1,000 lbs, 1,500 lbs, or a max 2,200 lbs payload (depending on vehicle).

Drawer System Compatibility: One truck bed slide with all your big heavy stuff on top plus two full bed-length, drawers with secured tools and gear sliding underneath = a match made in heaven.

Features

  • Easy to use

    Easily slide out up to 2,200 lbs of gear with the flick of a switch. Multiple cargo stops allow you to select just how far out you want it to extend.

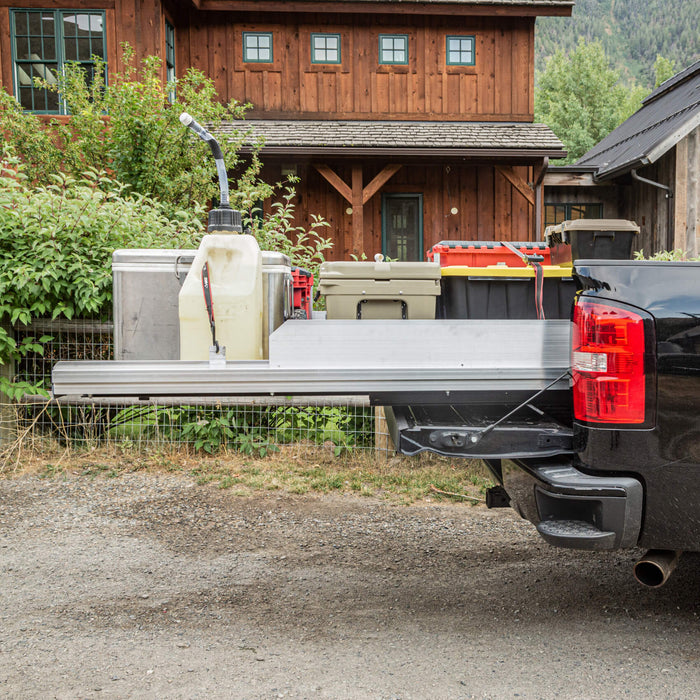

  • Heavy loads on a slope? No problem

    Slide thrust bearings keep the loaded tray from binding if parked on an angled slope. These bearings make the CargoGlide roll smoothly no matter how much torque you may put it under.

  • secure cargo retention

    The perimeter of the CargoGlide tray has interior and exterior channels for infinitely adjustable cargo tie down locations. Comes standard with [4] marine grade galvanized tie down loops. Accessory tie downs available for ratchet straps or other webbing to secure your load.

  • easy to install

    30 min. is all you need. CargoGlide comes preassembled. Simply drill according to instructions, install hardware and bolt it down. You only need a couple of drill bits and a socket set.

Testimonials

By far the best cargo management systems available! Amazing product with even best customer service to back it!
CANT GO WRONG

Keith Kroll

CargoGlide…. You will wonder how you ever lived without one!

Dennis Nash

Love their products and service… Over the top in customer satisfaction.

Lantz Brackett

Easy to install. Easy to use. Built like a tank. Every time I slide it out I think, “Wow, I’m so glad I got one of these!”.

Dan Sadler

Love mine, works great! Best add ever to my truck! As a disabled Vet, it allows me much more access to the back of my truck!

Matt Westrich

AMAZING product, amazing people, CargoGlide Truck Trays are a truck’s best friend!

Jessica Thalls

The Cargoglide was everything that I expected and it was really easy to install.

Douglas Fries

Where I have a lifted truck, I’m amazed how well my cargo glide 1000XL helps me out. I love it and makes it easy to get my hockey/goalie gear, golf clubs and hunting gear in and out of my box.

Blaine Hann

This product can change how you work. If you own a truck or van and do any work out of it, or haul anything in them, you Need CargoGlide. Revolutionary in what they have and I hear even more amazing products are coming out.

Scott Smith
Quick FAQ's and Tech Specs are specific to truck and product model.
CargoGlide / Midsize - Short / 70% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a midsize short bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System.  Shop CargoGlide for Drawer System.

Not compatible with any composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed w/ a DECKED Drawer System.

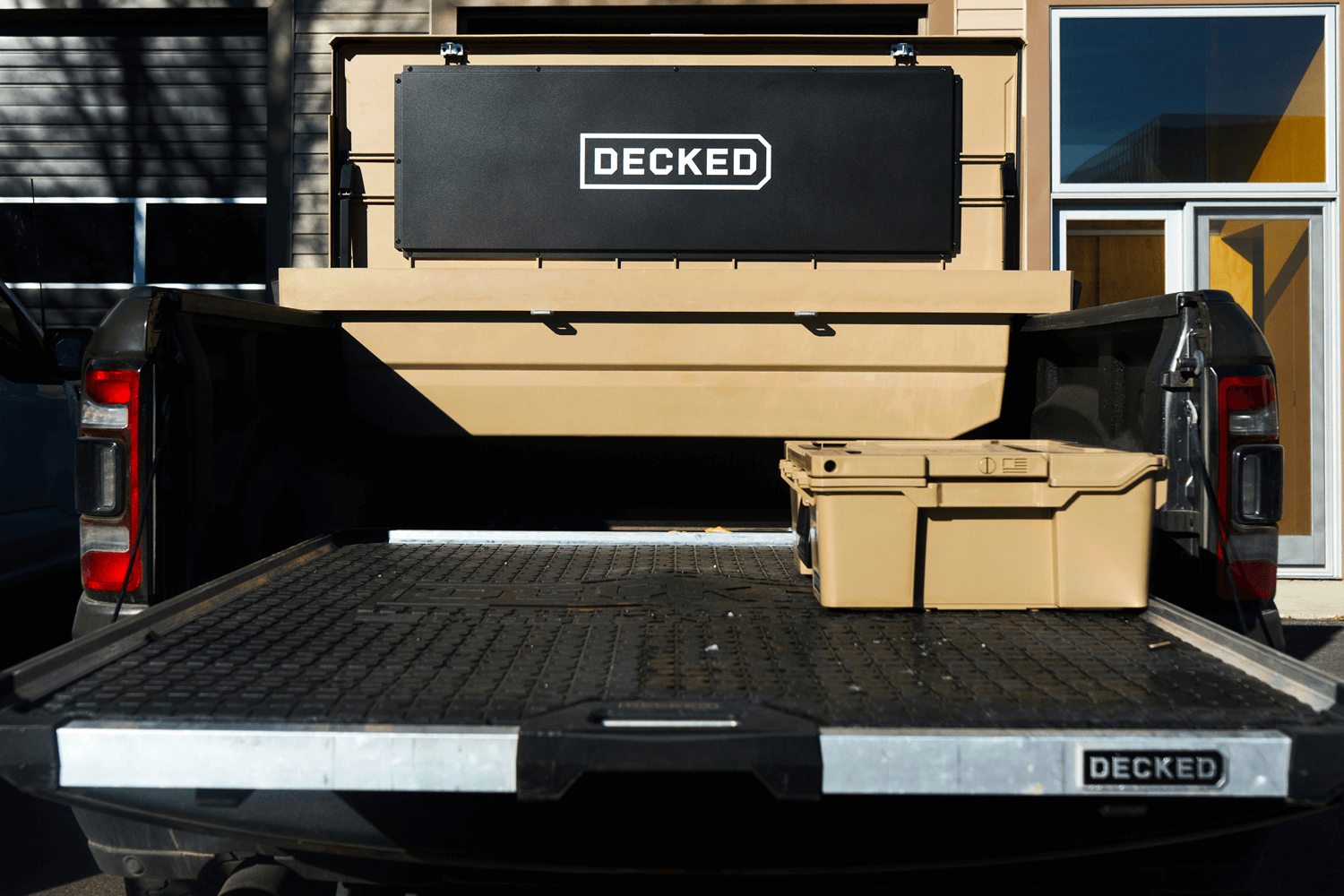

Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with stepside/flareside beds.

Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full bed-length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" product height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
56" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
123-127 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Midsize - Long / 70% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a midsize long bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Shop CargoGlide for Drawer System.

Not compatible with any composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full bed-length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[5] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
68" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
140-148 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Short / 70% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size short bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
137-145 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Standard / 70% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size standard bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
158-168 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Super / 70% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Drawer System compatible CargoGlides take an additional hardware kit and a slightly shorter length CargoGlide for Super Duty or 2500/3500 trucks. If you plan to install a CargoGlide on a Drawer System, make sure to Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
182-184 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - 8' / 70% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size 8' long bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Drawer System compatible CargoGlides take an additional hardware kit and a shorter length CargoGlide for 8' trucks. If you plan to install a CargoGlide on a Drawer System, make sure to Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
201-219 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Midsize - Short / 100% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a midsize short bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension CargoGlide models are compatible with the Drawer System.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height w/ High Sides
56" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
233 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Midsize - Long / 100% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a midsize long bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension CargoGlide models are compatible with the Drawer System.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[5] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" total height
13.5" height w/ High Sides
68" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
250 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR

INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Short / 100% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension and 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
250-255 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Standard / 100% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size standard bed truck.

Not compatible with a DECKED Drawer System Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
285 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Super / 100% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" total height
13.5" height w/ High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
295 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - 8' / 100% / 1,000 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size 8' long bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
330 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Short / 70% / 1,500 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height with High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
141-149 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Standard / 70% / 1,500 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size standard bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension, 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height with High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
163-173 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Super / 70% / 1,500 lbs - Not your truck?
Quick FAQ's


CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height with High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
187-195 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - 8' / 70% / 1,500 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size 8' long bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height w/ add-on High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
207-225 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Short / 100% / 1,500 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Side Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
320 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Standard / 100% / 1,500 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size standard bed truck.


Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Side Standard Kit at 48" long by 8" in height.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% of the cargo tray length slides out
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height with High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
330 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Super / 100% / 1,500 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.


Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
345 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - 8' / 100% / 1,500 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size 8' long bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
400 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Short / 100% / 2,200 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% of the cargo tray length slides out
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
340 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Standard / 100% / 2,200 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size standard bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% of the cargo tray length slides out
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
xxx lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - Super / 100% / 2,200 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
xxx lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Fullsize - 8' / 100% / 2,200 lbs - Not your truck?
Quick FAQ's

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size 8' long bed bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Tech Specs

For the enginerds

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height w/ High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
431 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide

truck bed slide 101

INSTALL VIDEO
