CargoGlide

CargoGlide Intermédiaire - Court / 70 % / 1 000 lb

Starting at:

Prix normal
$1,399.99 USD
Prix normal
USD
Prix réduit
$1,399.99
Prix unitaire
par
Disponibilité
Épuisé

LIVRAISON GRATUITE*

Tous les produits DECKED sont expédiés directement à votre porte d'entrée pour LIBRE n'importe où dans les États-Unis contigus

GARANTIE À VIE LIMITÉE

Nous fabriquons les produits les plus résistants du marché et nous soutenons tout ce que nous fabriquons avec notre garantie à vie limitée. Notre équipe veillera à ce que votre expérience soit sans pareille. Enregistrez vos produits en ligne pour les activer.

Paiement sécurisé

DECKED offers fast and secure checkout with all purchases.

Planning to install CargoGlide w/ a Drawer System?

CargoGlide - Compatible avec le système de tiroirs

$1,399.99

Shop Now >

Toboggan de lit DECKED

glissière de lit de camion

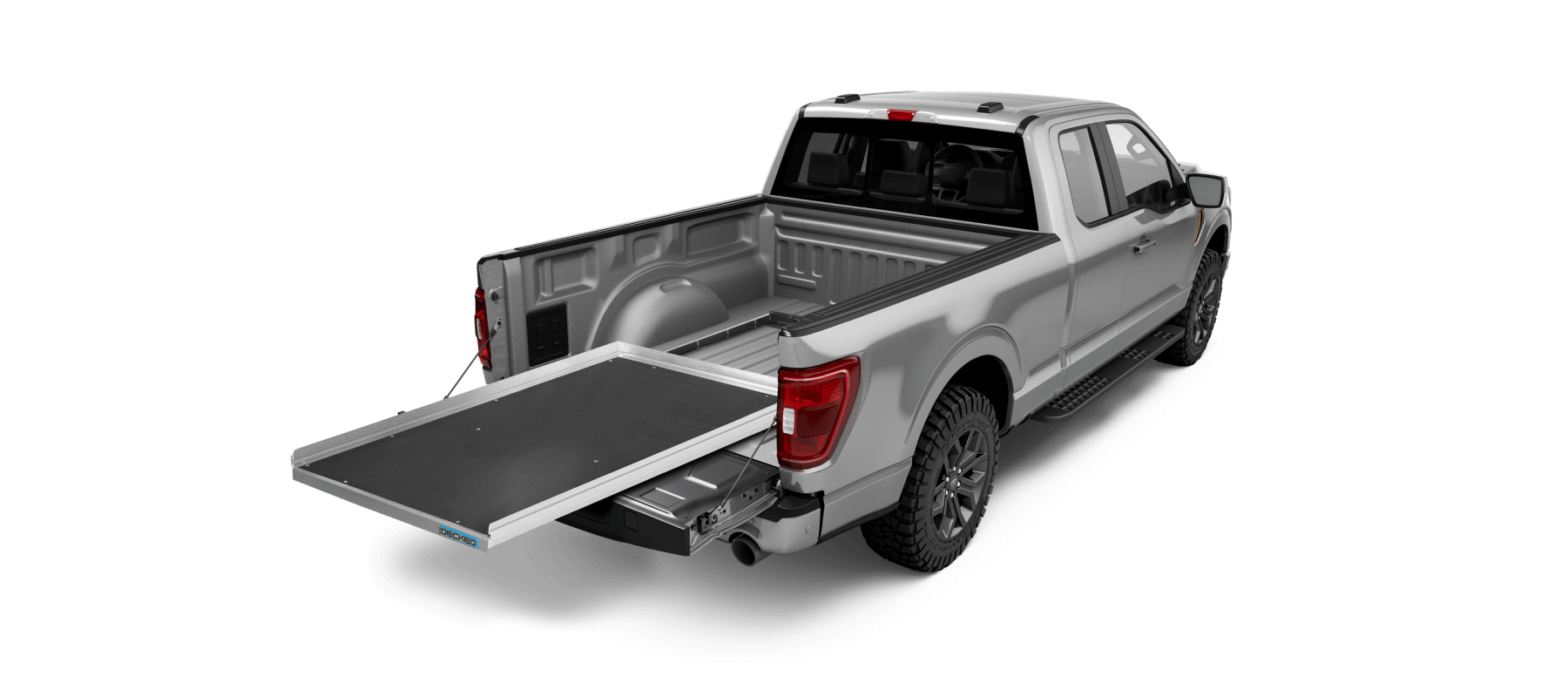

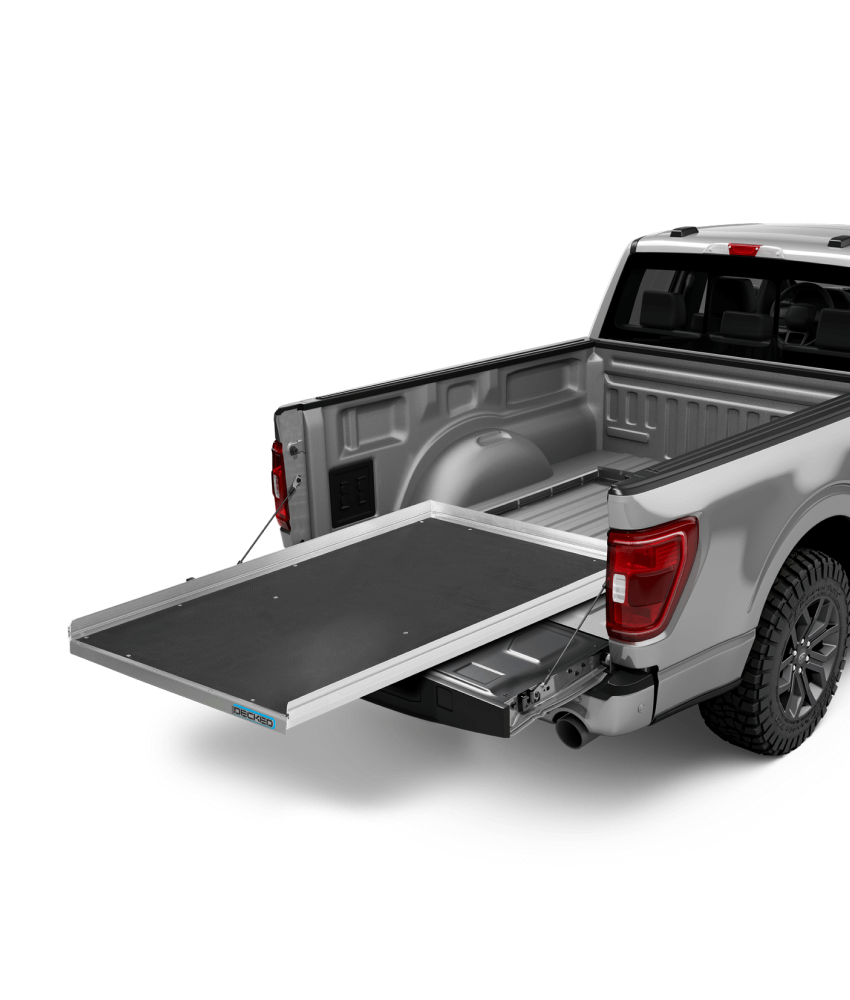

Le plateau coulissant DECKED CargoGlide pour lit de camion est une boîte à outils coulissante qui rend le chargement, le déchargement et l'accès à vos outils et équipements faciles, sûrs et rapides. Ne montez plus jamais dans le lit de votre camion pour récupérer votre équipement.

Le plateau roule sur des roulements robustes actionnés par un loquet à une main qui vous permet de glisser et de récupérer en douceur vos outils et matériaux.

organisation de lit de camion de force industrielle

qualité professionnelle

Le toboggan de lit le plus robuste et le plus durable du marché. Fabriquée à partir d'acier américain de gros calibre revêtu de poudre et de contreplaqué marin de qualité industrielle (revêtu d'une feuille supérieure en thermoplastique), la glissière de lit de camion CargoGlide peut supporter toute l'utilisation et l'abus du chantier et de l'environnement.

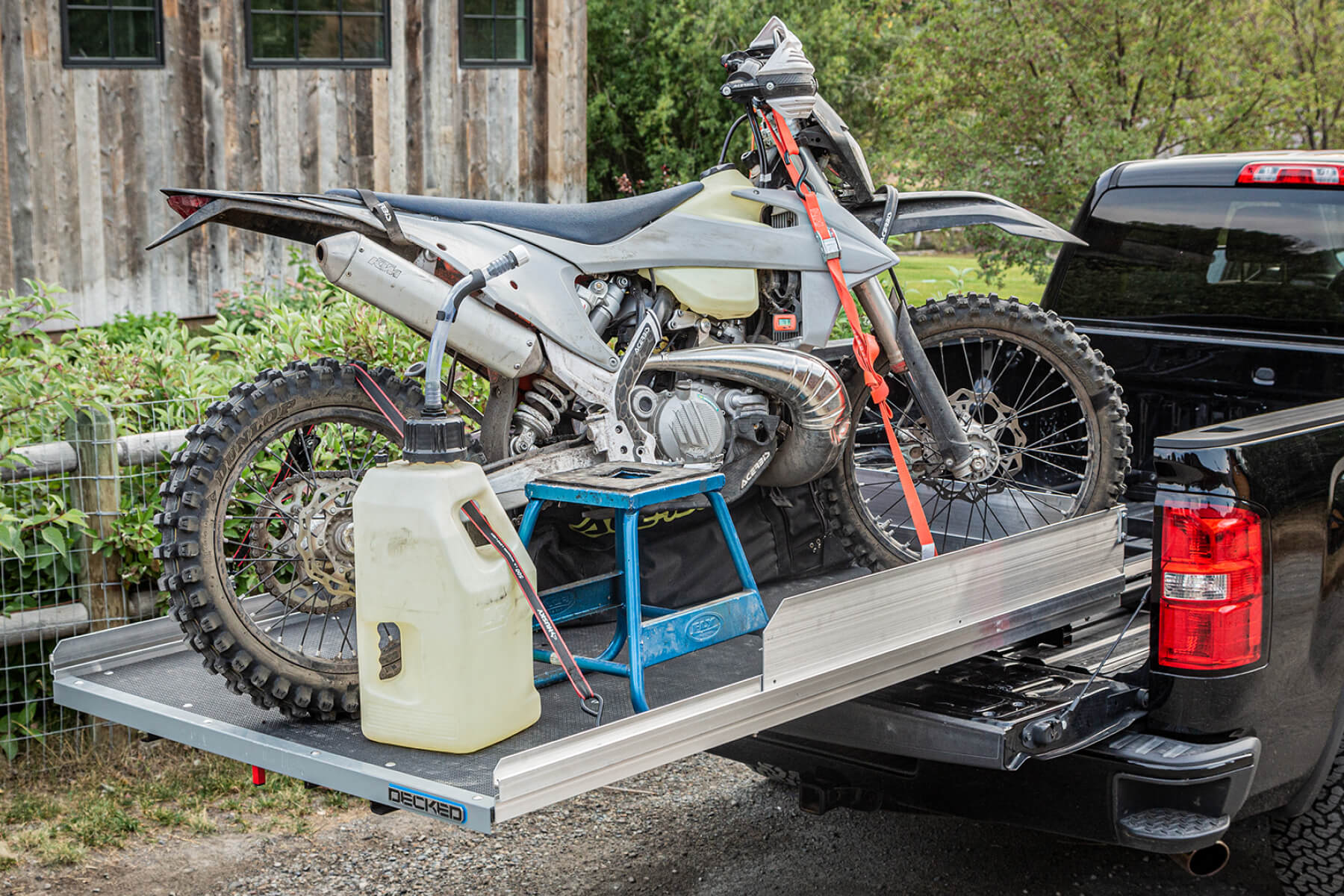

Chargez-le avec des compresseurs, des soudeurs, des boîtes à outils, etc. Tous vos éléments de travail glissent vers vous à chaque fois.

Glissière de lit de camion personnalisable

Choisissez la charge utile, l'extension et la compatibilité du système DECKED Drawer

Extension: CargoGlide s'adapte à la plupart des camions pleine grandeur ou de taille moyenne et est disponible en extension de 70 % ou 100 % (quantité de glissement du plateau hors du lit du véhicule).

Charge utile: Le plateau peut transporter jusqu'à 2 200 lb - choisissez entre une charge utile de 1 000 lb, 1 500 lb ou une charge utile maximale de 2 200 lb (selon le véhicule).

Compatibilité du système de tiroir : Une glissière de lit de camion avec toutes vos grosses affaires lourdes sur le dessus plus deux longueurs de lit pleine longueur, des tiroirs avec des outils sécurisés et du matériel coulissant en dessous = un match fait au paradis.

Fonctionnalités

  • Facile à utiliser

    Glissez facilement jusqu'à 2 200 lb d'équipement en appuyant simplement sur un interrupteur. Plusieurs arrêts de fret vous permettent de sélectionner jusqu'où vous voulez qu'il s'étende.

  • Charges lourdes en pente ? aucun problème

    Les paliers de butée à glissière empêchent le plateau chargé de se coincer s'il est garé sur une pente inclinée. Ces roulements permettent au CargoGlide de rouler en douceur, quel que soit le couple auquel vous pouvez le soumettre.

  • rétention sécurisée du fret

    Le périmètre du plateau CargoGlide a des canaux intérieurs et extérieurs pour des emplacements d'arrimage de cargaison réglables à l'infini. Livré en standard avec [4] boucles d'arrimage galvanisées de qualité marine. Attaches accessoires disponibles pour les sangles à cliquet ou autres sangles pour sécuriser votre charge.

  • facile à installer

    30 minutes. est tout ce dont vous avez besoin. CargoGlide est livré pré-assemblé. Percez simplement selon les instructions, installez le matériel et boulonnez-le. Vous n'avez besoin que de quelques forets et d'un jeu de douilles.

Témoignages

De loin les meilleurs systèmes de gestion de fret disponibles ! Produit incroyable avec même le meilleur service client pour le soutenir !
Je ne peux pas me tromper

Keith Kroll

CargoGlide…. Vous vous demanderez comment vous avez pu vivre sans !

Denis Nash

J'adore leurs produits et services… Au-dessus de la satisfaction client.

Parenthèse de Lantz

Facile à installer. Facile à utiliser. Construit comme un réservoir. Chaque fois que je le fais glisser, je pense: "Wow, je suis tellement content d'en avoir un!".

Dan Sadler

J'adore le mien, fonctionne très bien ! Le meilleur ajout à mon camion ! En tant que vétérinaire handicapé, cela me permet beaucoup plus d'accès à l'arrière de mon camion !

Matt Westrich

Produit incroyable, des gens incroyables, les plateaux de camion CargoGlide sont le meilleur ami d'un camion !

Jessica Thalls

Le Cargoglide était tout ce à quoi je m'attendais et il était vraiment facile à installer.

Frites Douglas

Là où j'ai un camion élévateur, je suis étonné de voir à quel point mon cargo glide 1000XL m'aide. Je l'adore et il est facile de mettre mon équipement de hockey/gardien de but, mes clubs de golf et mon équipement de chasse dans et hors de ma boîte.

Blaine Hann

Ce produit peut changer votre façon de travailler. Si vous êtes propriétaire d'un camion ou d'une fourgonnette et que vous effectuez des travaux ou transportez quoi que ce soit dedans, vous avez besoin de CargoGlide. Révolutionnaire dans ce qu'ils ont et j'entends dire que des produits encore plus étonnants sortent.

Scott-Smith
FAQ rapide and Spécifications techniques are specific to truck and product model.
Spécifications techniques
Pour les ingénieurs
CargoGlide / Intermédiaire - Court / 70 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a midsize short bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System.  Shop CargoGlide for Drawer System.

Not compatible with any composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed w/ a DECKED Drawer System.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with stepside/flareside beds.

Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full bed-length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track

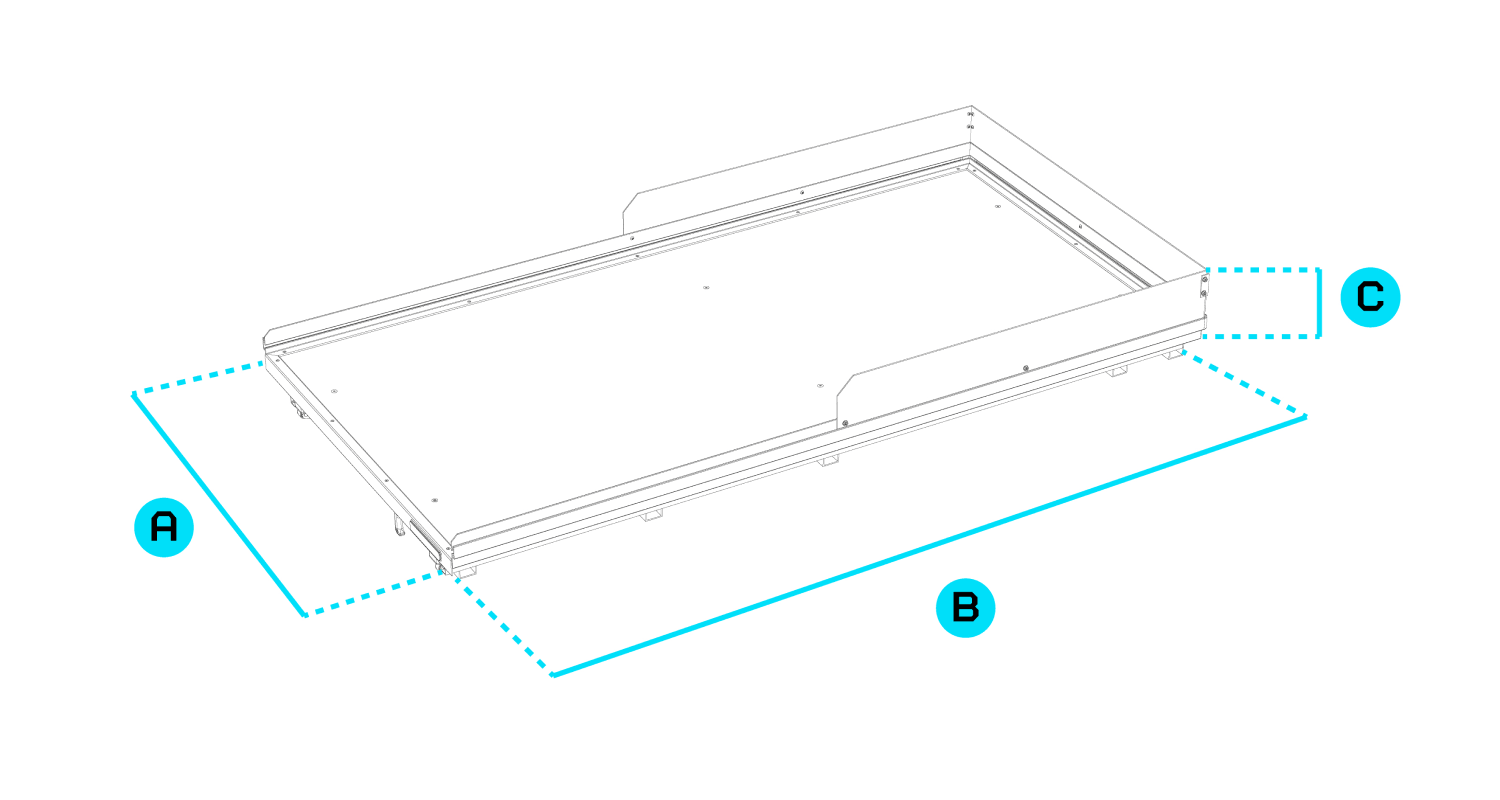

DIMENSIONS
7.5" product height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
56" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
123-127 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Intermédiaire - Long / 70 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a midsize long bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Shop CargoGlide for Drawer System.

Not compatible with any composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full bed-length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[5] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
68" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
140-148 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Court / 70 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size short bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
137-145 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Standard / 70 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size standard bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
158-168 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Super / 70 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Drawer System compatible CargoGlides take an additional hardware kit and a slightly shorter length CargoGlide for Super Duty or 2500/3500 trucks. If you plan to install a CargoGlide on a Drawer System, make sure to Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
182-184 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - 8' / 70% / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a full-size 8' long bed truck.

✔  Selected CargoGlide model is compatible with a DECKED Drawer System. Drawer System compatible CargoGlides take an additional hardware kit and a shorter length CargoGlide for 8' trucks. If you plan to install a CargoGlide on a Drawer System, make sure to Shop CargoGlide for Drawer System.

Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
7.5" total height
4" height from truck bed to top of tray
12" height w/ add-on High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
201-219 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
DECKED Drawer System  ✔
INSTALL
GUIDE
Download Install Guide
CargoGlide / Intermédiaire - Court / 100 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a midsize short bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension CargoGlide models are compatible with the Drawer System.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height w/ High Sides
56" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
233 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Intermédiaire - Long / 100 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a midsize long bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension CargoGlide models are compatible with the Drawer System.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[5] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" total height
13.5" height w/ High Sides
68" total length
41.75" total usable width
40.5" total usable deck space
WEIGHT
250 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR

INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Court / 100 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension and 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
250-255 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Standard / 100 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size standard bed truck.

Not compatible with a DECKED Drawer System Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
285 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Super / 100 % / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" total height
13.5" height w/ High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
295 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - 8' / 100% / 1 000 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a full-size 8' long bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
330 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[18] double roller bearings mid frame 63" and above (16) double roller bearings mid frame 62" and below 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Court / 70 % / 1 500 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height with High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
141-149 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Standard / 70 % / 1 500 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size standard bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension, 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height with High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
163-173 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Super / 70 % / 1 500 lb - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height with High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
187-195 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - 8' / 70% / 1 500 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 70% extension and 1,500 lbs payload that fits a full-size 8' long bed truck.

Not compatible with a DECKED Drawer System. Only 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
4.25" height from truck bed to top of tray
7.75" product height
12.25" height w/ add-on High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
207-225 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Court / 100 % / 1 500 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Side Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
320 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Standard / 100 % / 1 500 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size standard bed truck.


Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Side Standard Kit at 48" long by 8" in height.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% of the cargo tray length slides out
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height with High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
330 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Super / 100 % / 1 500 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.


Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
345 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - 8' / 100% / 1 500 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 1,500 lbs payload that fits a full-size 8' long bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
1,500 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
Includes High Sides
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height with High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
400 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Court / 100 % / 2 200 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size short bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% of the cargo tray length slides out
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
63" total length
48" total usable width
50" total product width
WEIGHT
340 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Standard / 100 % / 2 200 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size standard bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% of the cargo tray length slides out
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[6] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
73" total length
48" total usable width
50" total product width
WEIGHT
xxx lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - Super / 100 % / 2 200 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size Super Duty or 2500/3500 bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or Tacomas. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. General rule: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer kits, tailgate cable drop links, and/or shoulder bolts for current GMC/Chevy trucks known to have this issue. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" total height w/ High Sides
80" total length
48" total usable width
50" total product width
WEIGHT
xxx lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Pleine grandeur - 8' / 100% / 2 200 lb - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 2,200 lbs payload that fits a full-size 8' long bed bed truck.

Not compatible with a DECKED Drawer System. Only the 70% extension with 1,000 lbs payload CargoGlide models are compatible with the Drawer System.
Not compatible with the new Chevrolet/GMC CarbonPro bed.
Not compatible with any composite beds such as the 2022 Tundra or any Tacoma trucks. Note: It is compatible with composite bed trucks if installed with a DECKED Drawer System.
Not compatible with any in-bed towing packages including 5th Wheel and Gooseneck packages.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with any service body or RamBox beds at this time.
Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at 208-806-0251 or service@decked.com.

Included with purchase:
• [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.
• All 100% extension CargoGlides come with the High Sides Standard Kit.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full-bed length tray
PAYLOAD
2,200 lbs
FEATURES
Single hand latch operation
[7] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
5.5" height from truck bed to top of tray
9" product height
13.5" height w/ High Sides
95" total length
48" total usable width
50" total product width
WEIGHT
431 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[14] double roller bearings mid frame 3203zz
[12] side thrust bearings mid frame 6201
[2] Cam follower bearings bottom frame (tailgate end) 1.25" CYR
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide
CargoGlide / Ford - Maverick / 70% / 1,000 lbs - Not your truck?
FAQ rapide


CargoGlide full-bed length tray with a 70% extension and 1,000 lbs payload that fits a Ford Maverick.

Not compatible with a DECKED Drawer System. No Drawer System offered for Ford Maverick.
Not compatible with any composite beds such as the 2022 Tundras or Tacomas.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with stepside/flareside beds.

Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
70% extension
Full bed-length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
8.75" product height
4" height from truck bed to top of tray
52" total length
41.75" total width
40.5" total usable width
WEIGHT
112 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box

INSTALL
GUIDE
Download Install Guide
CargoGlide / Ford - Maverick / 100% / 1,000 lbs - Not your truck?
FAQ rapide

CargoGlide full-bed length tray with a 100% extension and 1,000 lbs payload that fits a Ford Maverick.

Not compatible with a DECKED Drawer System. No Drawer System offered for Ford Maverick.
Not compatible with any composite beds such as the 2022 Tundras or Tacomas.
Not compatible with the DECKED Truck Tool Box. It is compatible with other shallow crossover tool boxes. See total height of CargoGlide to measure for compatibility in technical specs.
Not compatible with stepside/flareside beds.

Bed liners: Compatible with spray-in bed liners, but not drop-in plastic bed liners or BedRug mats. Remove before install.

NOTE: Check tailgate clearance before install. Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. GENERAL RULE: the highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility with CargoGlide. Many Chevy/GMC trucks, as well as Ford trucks with a step-up handle, are known to have this issue and require the use of a riser. We offer an easy-to-install Universal Riser Kit for trucks with this issue.  All truck beds are different, so make sure to check your tailgate clearance before drilling into your bed to install the CargoGlide. Contact us with any questions at service@decked.com.

Included with purchase: all DECKED CargoGlides come standard with [4] adjustable marine grade galvanized tie down eyebolts for securing cargo. Full perimeter interior and exterior channels for adjustable cargo tie down locations.

DECKED Limited Lifetime Warranty:
We build the toughest products on the market and we stand behind them. All DECKED products come with a limited lifetime warranty. DECKED Warranty

FREE Shipping: All DECKED products ship FREE anywhere in the contiguous U.S. right to your front door. Orders usually ship within 3-5 business days and shipping takes 7-14 days. Shipping Policy

Please visit our Frequently Asked Questions page for more answers to those tough questions!

Spécifications techniques

Pour les ingénieurs

EXTENSION
100% extension
Full bed-length tray
PAYLOAD
1,000 lbs
FEATURES
Single hand latch operation
[4] cargo stops
Includes [4] heavy duty tie downs
Full perimeter tie down track
DIMENSIONS
8.75" product height
4" height from truck bed to top of tray
52" total length
41.75" total width
40.5" total usable width
WEIGHT
183 lbs
CONSTRUCTION
Powder coated USA steel frame
Industrial ¾” Marine Plywood deck
Coated with a thermoplastic top sheet
Aluminum sidewalls
[2] Cam follower bearings bottom frame 1.5" CYR
[2] double roller bearings top frame 3203zz
[2] side thrust bearings bolted to bottom frame 6201
INSTALL TIME
≤ 30 min.; comes preassembled
COMPATIBILITY
✖ Not compatible with a DECKED Drawer System
✖ Not compatible with a DECKED Tool Box
INSTALL
GUIDE
Download Install Guide

glissière de lit de camion 101

INSTALLER LA VIDÉO
